Stingray Stormer

Retired

Set number

6198-1

Theme

Aquazone

Sub theme

Stingrays

Year

1998

Pieces

412

Minifigures

4 total (3 distinct designs)

Age

8–12

Availability

Retail

Packaging

Box

Box size (L × W × H)

17.0 × 15.1 × 3.8 in (43.2 × 38.4 × 9.6 cm)

Retail price

not yet known

Release date

1998-04-01

Retired

1998-12-31

Shelf life

9 months

Instructions

Instructions

All 1 instruction PDF

Minifigures (4)

• 2×

  Stingray 1

  fig-005769

  In 4 sets
•

  Stingray 2

  fig-001042

  In 4 sets
•

  Stingray 3

  fig-000730

  In 4 sets

Qty	Image	Part	Name	Color	Sets
1		30084	Animal, Manta Ray	Black	In 9 sets
1		6086	Animal, Octopus [Plain]	Black	In 15 sets
6		4221	Arm Grab Jaw	Black	In 29 sets
5		3004	Brick 1 x 2	Black	In 1,820 sets
2		3622	Brick 1 x 3	Black	In 709 sets
4		3003	Brick 2 x 2	Black	In 1,101 sets
2		2357	Brick 2 x 2 Corner	Black	In 448 sets
1		3002	Brick 2 x 3	Black	In 717 sets
2		3001	Brick 2 x 4	Black	In 1,114 sets
2		3007	Brick 2 x 8	Black	In 268 sets
13		3298	Brick Sloped 33° 3 x 2	Black	In 341 sets
6		3298pr0047	Brick Sloped 33° 3 x 2 with Stingrays 3 Black Arcs and White Circles Print	Black	In 2 sets
2		3297	Brick Sloped 33° 3 x 4	Black	In 159 sets
2		3048c	Brick Sloped 45° 2 x 1 Triple with Ovoid Bottom Pin	Black	In 94 sets
2		3037	Brick Sloped 45° 2 x 4	Black	In 266 sets
2		3660	Brick Sloped Inverted 45° 2 x 2 [Ovoid Bottom Pin, Bar-sized Stud Holes]	Black	In 561 sets
1		6069	Brick Wedged, Sloped 4 x 4 Triple, No Stud Notches	Black	In 8 sets

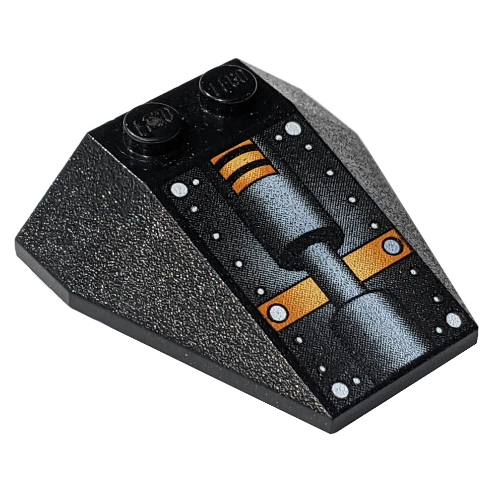

2		6069pr0009	Brick Wedged, Sloped 4 x 4 Triple, No Stud Notches with White Dots and Hydraulic Print (Stingray Engine)	Black	Exclusive
1		70001pr0001	Equipment Compass with White Lines, Yellow Letters Print	Black	In 9 sets
1		2342	Equipment Control Panel	Black	In 20 sets
2		4276b	Hinge Plate 1 x 2 with 2 Fingers and Hollow Studs	Black	In 120 sets
2		3640	Hinge Plate 2 x 4 with Articulated Joint - Female	Black	In 26 sets
2		3639	Hinge Plate 2 x 4 with Articulated Joint - Male	Black	In 26 sets
1		4315	Hinge Vehicle Roof Holder 1 x 4	Black	In 106 sets
2		73092	Magnet Cylindrical	Black	In 140 sets
1		2607	Magnet Holder 2 x 3	Black	In 21 sets
1		2609b	Magnet Holder Tile 2 x 2 - Tall Arms with Deep Notch	Black	In 10 sets

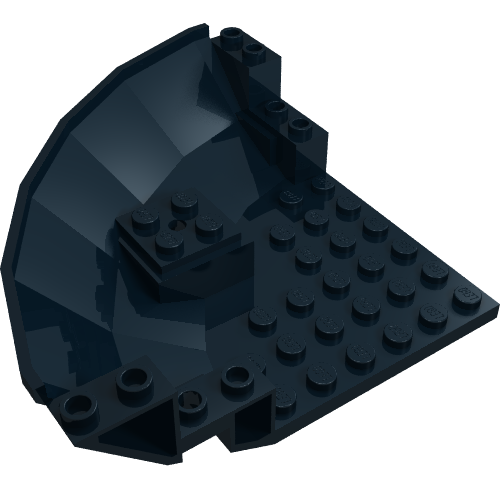

4		30201	Panel 10 x 10 x 2 2/3 Quarter Saucer Base	Black	In 2 sets
4		4865a	Panel 1 x 2 x 1 [Square Corners]	Black	In 177 sets
1		3832	Plate 2 x 10	Black	In 692 sets
4		3034	Plate 2 x 8	Black	In 1,092 sets
2		2639	Plate 4 x 4 Corner	Black	In 46 sets
2		3456	Plate 6 x 14	Black	In 69 sets
2		4032a	Plate Round 2 x 2 with Axle Hole Type 1 (+ Opening)	Black	In 1,109 sets
2		2540	Plate Special 1 x 2 Side Handle [Free Ends]	Black	In 707 sets
4		4623	Plate Special 1 x 2 with Bar Up [Horizontal Arm 6mm]	Black	In 155 sets
2		4590	Plate Special 1 x 4 Offset with Bar Holes	Black	In 91 sets
4		6040	Propeller Housing	Black	In 16 sets
1		4857	Slope 45° 4 x 4 Double with Hinge	Black	In 4 sets
2		32062	Technic Axle 2 Notched	Black	In 1,006 sets
4		6636	Tile 1 x 6 with Groove	Black	In 784 sets
5		3068bpr9881	Tile 2 x 2 with Aquazone Silver and Copper Circular Print	Black	In 9 sets
3		3068bpr0021	Tile 2 x 2 with Yellow Arrow without Border Print	Black	In 8 sets
6		2555	Tile Special 1 x 1 with Clip and Straight Tips	Black	In 312 sets
1		2432	Tile Special 1 x 2 with Handle	Black	In 450 sets
2		3959	Weapon Gun / Torch (Space) [with Grooves]	Black	In 95 sets
2		4859	Wedge Plate 3 x 4 without Stud Notches	Black	In 92 sets
6		6106	Wedge Plate 6 x 6 Cut Corner	Black	In 87 sets
1		3586	Wedge, Plate 7 x 12 Wing Left	Black	In 6 sets
1		3585	Wedge, Plate 7 x 12 Wing Right	Black	In 6 sets
1		3794a	Plate Special 1 x 2 with 1 Stud without Groove (Jumper)	Blue	In 126 sets
2		3700	Technic Brick 1 x 2 [1 Pin Hole]	Blue	In 229 sets
1		3956	Bracket 2 x 2 - 2 x 2	Brown	In 2 sets
2		3623	Plate 1 x 3	Brown	In 31 sets
14		3022	Plate 2 x 2	Brown	In 23 sets
8		3020	Plate 2 x 4	Brown	In 31 sets
2		3030	Plate 4 x 10	Brown	In 2 sets
2		2460	Tile Special 2 x 2 with Top Pin	Brown	In 3 sets
2		30385	Rock 1 x 1 Crystal 5 Point	Chrome Silver	In 33 sets
4		57467	Weapon Harpoon [4 Grooves on Shaft]	Chrome Silver	In 37 sets
1		2547	Animal Body Part, Shark Body, without Bottom Tube	Dark Gray	In 25 sets
1		2548	Animal Body Part, Shark Head	Dark Gray	In 25 sets
4		3003	Brick 2 x 2	Dark Gray	In 63 sets
4		3040b	Brick Sloped 45° 2 x 1 with Bottom Pin	Dark Gray	In 50 sets
7		3039	Brick Sloped 45° 2 x 2	Dark Gray	In 65 sets
2		3039pr9974	Brick Sloped 45° 2 x 2 with Red Square and Circuitry Print	Dark Gray	In 7 sets

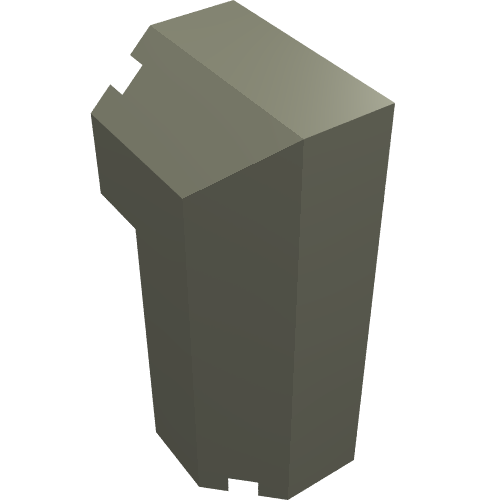

2		6043	Brick Special Octagonal 2 x 2 x 3 1/3 Corner	Dark Gray	Exclusive

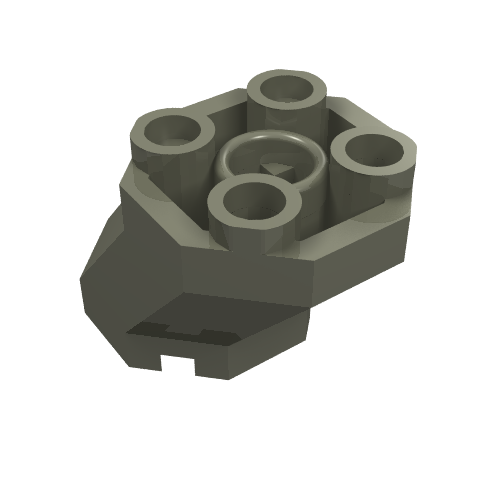

2		6032	Brick Special Octagonal 2 x 3 x 1 2/3 Sloped	Dark Gray	Exclusive
3		30198	Equipment Grab Jaw Holder	Dark Gray	In 6 sets
2		4275b	Hinge Plate 1 x 2 with 3 Fingers [Hollow Studs]	Dark Gray	In 3 sets
1		4625	Hinge Tile 1 x 4	Dark Gray	In 6 sets
4		30195pr0001	Plate Special 2 x 6 with 4 x 8 Half Saucer and Stingray Print	Dark Gray	In 3 sets
1		4151a	Plate Special 8 x 8 with Grille [No Hole in Center]	Dark Gray	In 15 sets
4		3069bpr0053	Tile 1 x 2 with Copper and White Circuitry, Red Rectangle and 4 Squares Print	Dark Gray	In 8 sets
2		3069b	Tile 1 x 2 with Groove	Dark Gray	In 18 sets
11		2431	Tile 1 x 4 with Groove	Dark Gray	In 36 sets
2		3068b	Tile 2 x 2 with Groove	Dark Gray	In 24 sets

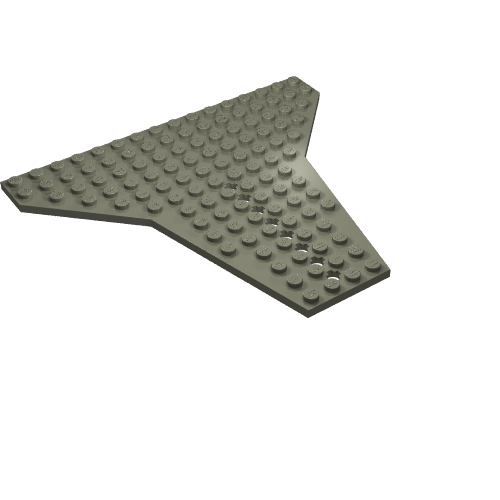

4		6219	Wedge, Plate 16 x 14 Shuttle	Dark Gray	Exclusive
2		2450	Wedge Plate 3 x 3 Cut Corner	Dark Gray	In 4 sets
4		2419	Wedge Plate 3 x 6 Cut Corners	Dark Gray	In 22 sets
2		3933	Wedge Plate 8 x 4 Wing Left	Dark Gray	In 6 sets
2		3934	Wedge Plate 8 x 4 Wing Right with Stud Notch	Dark Gray	In 6 sets
2		5102c20	Hose, Pneumatic 4mm D. 20L / 16cm	Light Gray	In 4 sets
8		59275	Minifig Footwear Flipper [Thin]	Light Gray	In 8 sets
15		2654	Plate Round 2 x 2 with Rounded Bottom [Boat Stud]	Light Gray	In 66 sets
6		3749	Technic Axle Pin without Friction Ridges Lengthwise	Light Gray	In 444 sets
4		3679	Turntable 2 x 2 Plate - Top	Light Gray	In 388 sets
9		3004	Brick 1 x 2	Red	In 1,495 sets
1		3010	Brick 1 x 4	Red	In 988 sets
1		3006	Brick 2 x 10	Red	In 193 sets
2		3003	Brick 2 x 2	Red	In 897 sets
10		3062b	Brick Round 1 x 1 Open Stud	Red	In 655 sets
3		2458	Brick Special 1 x 2 with Pin	Red	In 95 sets
2		6565	Brick Wedged, Angled 3 x 2 Left	Red	In 50 sets
2		6564	Brick Wedged, Angled 3 x 2 Right	Red	In 49 sets
1		6064	Plant, Bush 2 x 2 x 4	Red	In 4 sets
6		3023	Plate 1 x 2	Red	In 1,916 sets
2		3710	Plate 1 x 4	Red	In 1,220 sets
4		2420	Plate 2 x 2 Corner	Red	In 483 sets
1		3021	Plate 2 x 3	Red	In 1,031 sets
1		3795	Plate 2 x 6	Red	In 691 sets
3		3034	Plate 2 x 8	Red	In 477 sets
3		3031	Plate 4 x 4	Red	In 372 sets
4		3680	Turntable 2 x 2 Plate, Base	Red	In 133 sets
1		4346pr0018	Box 2 x 2 x 2 Door with Slot and Stingray Mechanical Print	Trans-Neon Green	In 4 sets
1		4345b	Box 2 x 2 x 2 [Hollow Studs]	Trans-Neon Green	In 10 sets
13		3941	Brick Round 2 x 2 with Axle Hole	Trans-Neon Green	In 73 sets

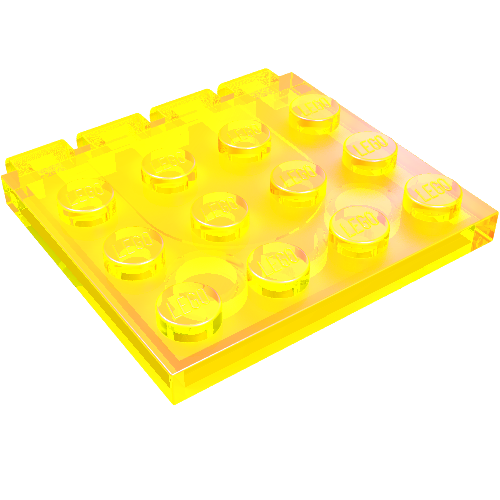

1		4213	Hinge Vehicle Roof 4 x 4	Trans-Neon Green	Exclusive

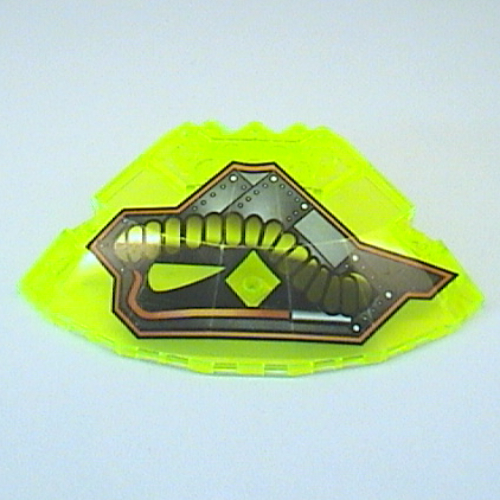

1		30117pr0006	Panel 10 x 10 x 2 1/3 Quarter Saucer Top with Stingray Print Left (teardrop at front & points left)	Trans-Neon Green	Exclusive

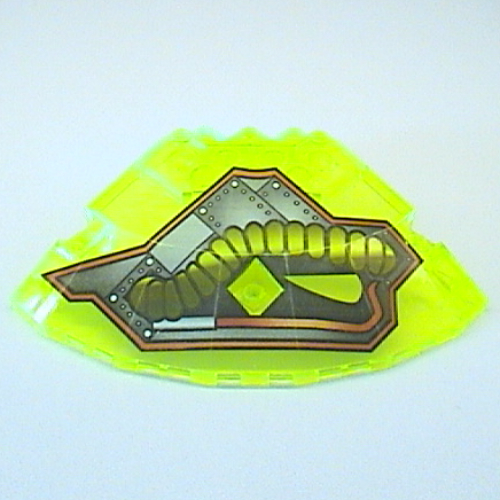

1		30117pr0007	Panel 10 x 10 x 2 1/3 Quarter Saucer Top with Stingray Print Right (teardrop at front & points right)	Trans-Neon Green	Exclusive
5		3023	Plate 1 x 2	Trans-Neon Green	In 65 sets
18		6141	Plate Round 1 x 1 with Solid Stud	Trans-Neon Green	In 360 sets
8		6041	Propeller 3 Blade 3 Diameter with Axle Cross	Trans-Neon Green	In 10 sets
18		2412b	Tile Special 1 x 2 Grille with Bottom Groove	Trans-Neon Green	In 44 sets

Building instructions

• BUILDING INSTR. 6198

PDFs from LEGO.com. The same booklet is often printed in several versions (e.g. V29 EU A4 format, V39 US Letter format).
